Quality ice is essential for great-tasting and great-looking beverages.
Don’t let ineffective water filtration to your ice machine stand in the way.


The challenge

Ice machines can be prone to service issues or produce sub-standard ice that may halt your service operations. They are also prone to biofilm growth and scale build-up, which accounts for 70% of service calls, and sediment particles that put them at risk for breakdowns, increased maintenance and inefficient operation.


Aqua-Pure™ Water Filtration solutions help keep your equipment up and running and the ice flowing.


How water filtration keeps equipment ready to serve


  • Built-in scale inhibition and sediment trapping to help keep tubing clear and the system flowing efficiently
  • Helps prevent corrosion effects and extend the life of pumps, valves, seals and more
  • Chlorine taste, odor and particulate reduction
  • Reduce waterborne bacteria1

A hand holding a cup containing ice and a soft drink beneath a soda dispenser.

CUT DOWN ON IMPURITIES AND MAINTENANCE WITH ADVANCED FILTRATION TECHNOLOGY


Aqua-Pure™ Water Filtration Systems for ice applications provide consistent high quality water by reducing particulate, bacteria (E. coli)1, and cyst2. Built-in scale inhibition can help to prevent the potentially harmful effects of scale build-up on equipment.

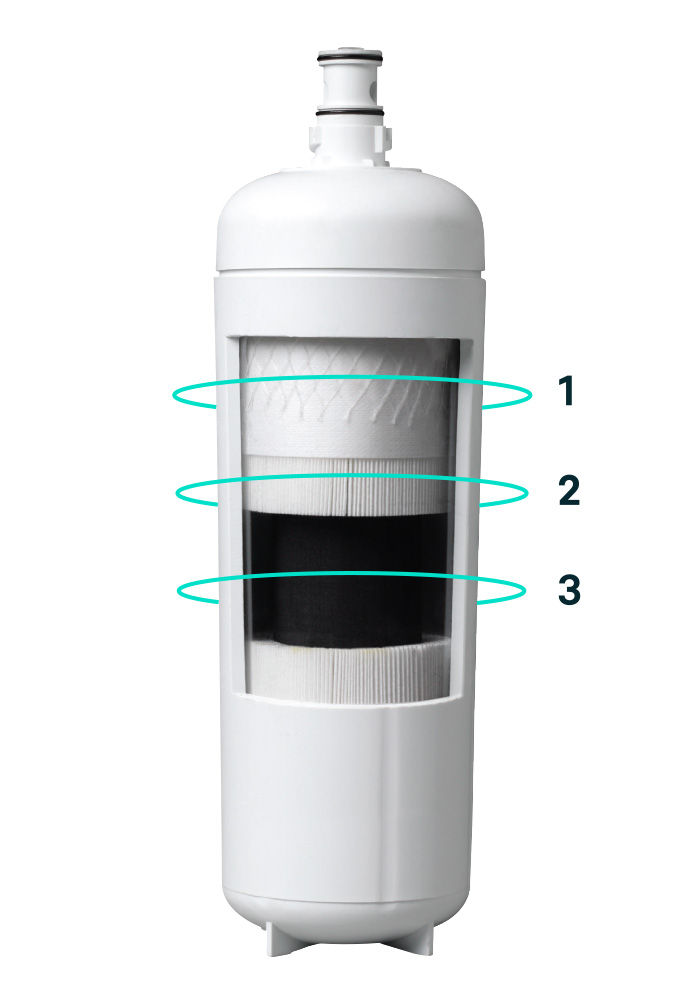

THREE-STAGE FILTR ATION IN ONE CARTRIDGE


1. PRE-FILTRATION

Non-woven filtration media reduces larger size particles to help increase sediment holding capacity of the filter.


2. FINE FILTRATION

Two-zone microporous pleated membrane reduces protozoan cysts and helps provide excellent sediment life with minimal pressure drop.


3. FINAL FILTRATION

Activated carbon filtration; carbon block technology reduces chlorine taste and odor.


Cutaway image of a water filter identifying three individually numbered areas of the filter.

ADDITIONAL PRODUCT BENEFITS

  • Cartridge filter models available that feature Integrated Membrane Pre-Activated Carbon Technology (I.M.P.A.C.T.) provides excellent cartridge life and economy.3
  • Single-cartridge flow rates and capacities previously available only with three or four-cartridge systems
  • Up to 12-month cartridge life
  • Sanitary Quick Change (SQC) encapsulated cartridge design allows for fast and easy cartridge change-outs without the need for a filter wrench
  • Direct or easily adaptable connections to existing plumbing lines
  • Reduction of 99.999 percent of waterborne bacteria1
  • Some models certified to NSF Standard 42 for class 1 particulate chlorine taste, odor and chloramine reduction, NSF Standard 53 for cyst reduction2 and NSF Standard 401 for microplastics reduction. Refer to product specifications sheet for full claims details.

1 As demonstrated with 99.9999% reduction of surrogate organism E. coli (ATCC 11229) and P. fluorescens (ATCC 49642) in manufacturer’s lab test.
2 Certified to NSF Standard 53 for Cyst Reduction. Based on testing using Cryptosporidium parvum oocysts.
3 Filters featuring the Integrated Membrane Pre-Activated Carbon Technology (I.M.P.A.C.T.) media can clearly be identified by the icon on the product label.


Filter Sizing Guide for Commercial Ice Machines

Sizing for 6-month cartridge change based on ice machine size, up to lbs./kg per day

Model No. Commerial Cubers Commercial Flakers and Nugget Machines
ICE120-S
ICE120-SI
ICE125-S		 Up to 750 lbs/day (340.2 kg/day) Up to 1,200 lbs/day (544.3 kg/day)
ICE140-S
ICE145-S		 Up to 1,000 lbs/day (453.6 kg/day) Up to 1,800 lbs/day (816.5 kg/day)
ICE160-S
ICE165-S		 Up to 1,450 lbs/day (657.7 kg/day) Up to 2,400 lbs/day (1,088.6 kg/day)
ICE190-S
ICE195-S		 Up to 2,170 lbs/day (984.2 kg/day) Up to 3,593 lbs/day (1,630 kg/day)
ICE260-S
ICE265-S		 Up to 2,900 lbs/day (1,215 kg/day) Up to 4,800 lbs/day (2,177 kg/day)

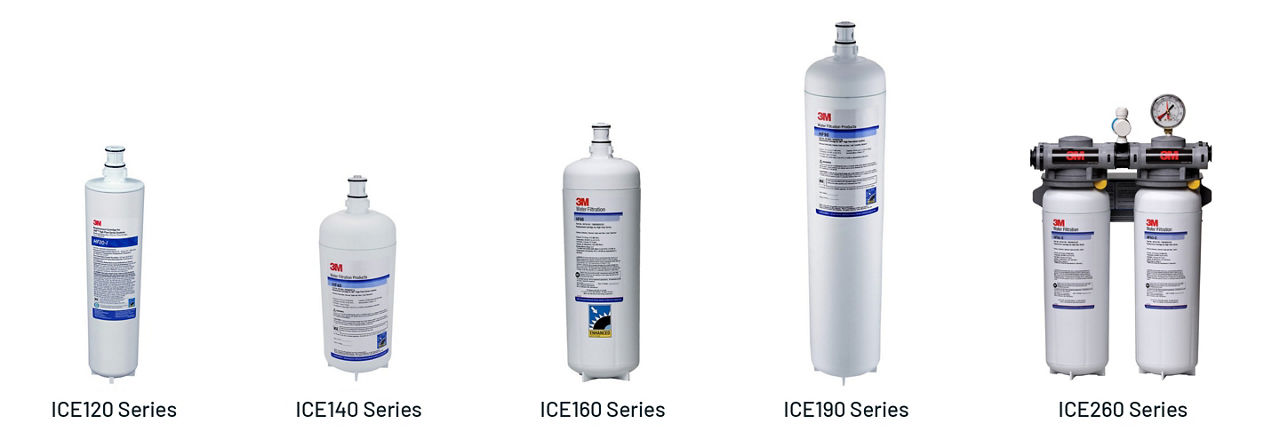

Five water filtration products in a row, labeled with product series number.

3M™ High Flow Series System for Ice Applications

Standard filtration with chlorine, taste, odor, sediment reduction, scale inhibition


ICE120-S

Part Number: 5616003
Micron: 0.5
Flow Rate (GPM): 1.5
Capacity (Gal): 9,000
Connection: 3/8" NPT
Replacement Cartridge: HF20-S
Reduces: Particulate, Chlorine, Taste and Odor, Cyst*, Scale**, Microplastics



BUY NOW



ICE120-SI

Part Number: 5616018
Micron: 0.2
Flow Rate (GPM): 1.67
Capacity (Gal): 14,000
Connection: 3/8" NPT
Replacement Cartridge: HF20-SI
Reduces: Particulate, Chlorine, Taste and Odor, Cyst*, Scale**, Bacteria*** Microplastics



BUY NOW



ICE125-S

Part Number: 5616004
Micron: 1
Flow Rate (GPM): 1.5
Capacity (Gal): 10,000
Connection: 3/8" NPT
Replacement Cartridge: HF25-S
Reduces: Particulate, Chlorine, Taste and Odor, Scale**



BUY NOW



ICE140-S

Part Number: 5616203
Micron: 0.2
Flow Rate (GPM): 2.5
Capacity (Gal): 25,000
Connection: 3/8" NPT
Replacement Cartridge: HF40-S
Reduces: Particulate, Chlorine, Taste and Odor, Cyst*, Scale**, Bacteria*** Microplastics

BUY NOW



ICE145-S

Part Number: 5616204
Micron: 3
Flow Rate (GPM): 2.1
Capacity (Gal): 25,000
Connection: 3/8" NPT
Replacement Cartridge: HF45-S
Reduces: Particulate, Chlorine, Taste and Odor, Scale**


BUY NOW



ICE160-S

Part Number: 5616303
Micron: 0.2
Flow Rate (GPM): 3.34
Capacity (Gal): 35,000
Connection: 1/2" NPT
Replacement Cartridge: HF60-S
Reduces: Particulate, Chlorine, Taste and Odor, Cyst*, Scale**, Bacteria*** Microplastics

BUY NOW



ICE165-S

Part Number: 5616304
Micron: 3
Flow Rate (GPM): 3.34
Capacity (Gal): 35,000
Connection: 1/2" NPT
Replacement Cartridge: HF65-S
Reduces: Particulate, Chlorine, Taste and Odor, Scale**


BUY NOW



ICE190-S

Part Number: 5616403
Micron: 0.2
Flow Rate (GPM): 5
Capacity (Gal): 54,000
Connection: 1/2" NPT
Replacement Cartridge: HF90-S
Reduces: Particulate, Chlorine, Taste and Odor, Cyst*, Scale**, Bacteria*** Microplastics

BUY NOW



ICE195-S

Part Number: 5616404
Micron: 3
Flow Rate (GPM): 5
Capacity (Gal): 54,000
Connection: 1/2" NPT
Replacement Cartridge: HF95-S
Reduces: Particulate, Chlorine, Taste and Odor, Scale**



BUY NOW



ICE260-S

Part Number: 5624503
Micron: 0.2
Flow Rate (GPM): 6.68
Capacity (Gal): 70,000
Connection: 3/4" NPT
Replacement Cartridge: (2) HF60-S
Reduces: Particulate, Chlorine, Taste and Odor, Cyst*, Scale**, Bacteria*** Microplastics


BUY NOW



ICE265-S

Part Number: 5624504
Micron: 3
Flow Rate (GPM): 6.68
Capacity (Gal): 70,000
Connection: 3/4" NPT
Replacement Cartridge: (2) HF65-S
Reduces: Particulate, Chlorine, Taste and Odor, Scale**



BUY NOW


* Based on testing using Cryptosporidium parvum oocysts.
** As tested and verified by manufacturer’s laboratory.
*** Reduction of water-borne bacteria as demonstrated with 99.99% reduction of surrogate organism E. coli (ATCC 11229) and P. fluorescens (ATCC 49642) in manufacturer’s lab test.
